Pharmaceutical aseptic vial filling machine

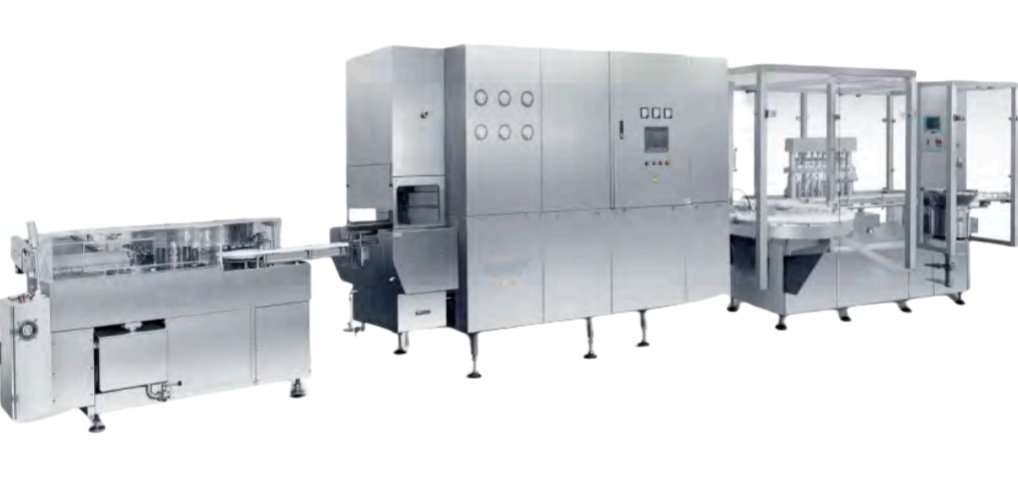

The pharmaceutical aseptic vial filling production line consists of ultrasonic bottle washing machine, high temperature dryer, high speed filling and stoppering machine and cap rolling machine.All parts are closely connected, the operation is safe, stable and efficient, and the whole set of equipment conforms to the international pharmaceutical GMP standard.
Ultrasonic bottle washing machine is a new generation of glass vaccine vial cleaning equipment. adopt the now internationally popular non-contact washing method, the use of ultrasonic "cavitations" effect will have a strong mechanical force on the dirt strip off the bottle, it can not only achieve the goal of cleaning but also inside and outside of bottles attached to a variety of microorganisms, eterobacteriaceae and similar bacteria to sonication, which played a clean, disinfection and sterilization effect.
Technical Parameters:
Power Supply 380V 50Hz
Power Consumption 20KW
Water Consumption(m³/h) 1.4
Air Consumption(m³/h) 100
Bottle Breakage Ratio ≤0.1%
Single Noise ≤70dB
Hot air circulating tunnel sterilization oven using electric heating as the heat energy, the energy generated by the electric heating elements, the use of hot air circulating fan oven heating section of Class 100 clean air inside the bottle of convective heat exchange cycle, the required sterilization of the bottle the heat transfer, and continuous supply of fresh air, while eliminating air or saturated humid chamber heat, so as to achieve drying of the items are sterilized bottles.
Vial filling machine is the new generation product developed by our company by refer to foreign high technology. This machine is advanced in design,it is easy to operate and clean. Can select peristaltic pump or ceramic pump to fill accord to the different requirements and drugs. It is completely meet GMP requirements.
Vial capping machine is the major equipment of injection or freeze-dried powder production, the main working principle is the use of Unscrambles turntable into the bottle, large circular disc lock knife, to rotate the cap to be locked, bottles around disc lock knife to do the satellite rotation, and complete locking cover.
Welcome to send us an inquiry. Please refer to the resources for more detailed parameters and instructions. Thanks.
