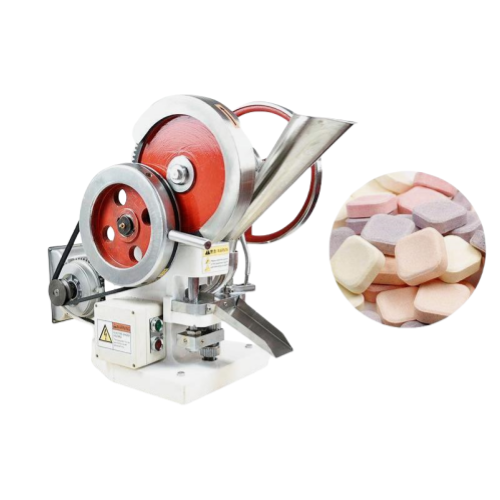

Single Punch Tablet Press Machine
TDP series single punch tablet press machine, used for pressing different kinds of materials into tablets, can be widely used in pharmacy, chemical, food, hospitals, scientific research units, lab trial production and small batch production. It is suitable for small batch production of tablet making.
This machine has top-of-the-line performance record. It is sturdy, adjustable, operator friendly, easy to maintain, compact and light weight.
Specifications
| Model | TDP-1.5 | TDP-5 | TDP-6 |
|---|---|---|---|
| Max. pressure (KN) | 15 | 50 | 60 |
| Max. dia. of tablet(mm) | 12 | 20 | 25 |
| Max. depth of filling(mm) | 12 | 15 | 18 |
| Capacity (tablets/h) | 5000 | 4500 | 3000 |
| Rotational speed (r/min) | 1400 | 1400 | 1400 |
| Power(w) | 110V 60Hz / 220V 50Hz 0.4kw | 110V 60Hz / 220V 50Hz 0.75kw | 110V 60Hz / 220V 50Hz 1.1kw |
| Weight | 78kg | 120kg | 165kg |
| Dimensions | 570X380X630mm | 650x440x650mm | 750x380x695mm |
