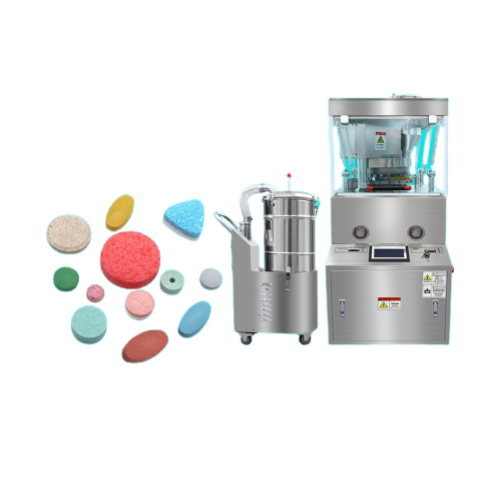

Rotary Tablet Press Machine
The Rotary Tablet Press Machine is a high-performance equipment designed to compress various granular materials into tablets or pill of uniform size and weight. Ideal for pharmaceutical, nutraceutical, and chemical industries, this machine provides a reliable solution for small to medium-scale production needs. With its user-friendly interface, robust design, and consistent performance, the pill making machine ensures efficiency and quality in tablet manufacturing.
Applications
The Tablet Press Machine is suitable for:
Pharmaceutical Industry: Compression of medicines into pill with precise dosage.
Nutraceutical Industry: Used for making herbal supplements, vitamins, and other health products.
Chemical Industry: Compression of powdered chemicals into solid tablet forms.
Food Industry: Used for producing candy and other tablet-shaped consumables.
Specifications
| Model | ZPW-29 | ZPW-29B |
|---|---|---|
| Number of dies | 29 | 29 |
| Max Pressure(KN) | 80 | 80 |
| Pre-compression Force | ---- ---- | 10 |
| Max Diameter of Tablet(mm) | 25 | 23 |
| Max Fill Depth(mm) | 15 | 15 |
| Max Thickness of Tablet(mm) | 6 | 6 |
| Max Production Capacity Per Hour | 135000 | 110000 |
| Turret Speed(r/min) | 14-36 | 5-30 |
| Double Layered Tablet | On Request | On Request |
| Motor(kW) | 5.5 | 5.5 |
| Overall dimensions(mm) | 1230*950*1670 | 1230*950*1670 |
| Weight (kg) | 1700 | 2300 |
