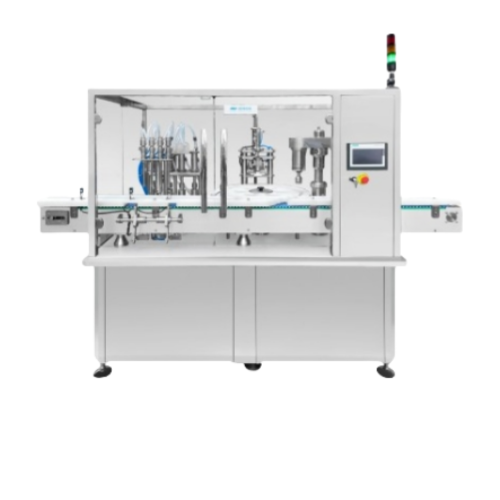

Eye Drop Filling Machine

This machine is the filling host in the eye drop liquid filling line, which is mainly used for filling 10-15ml plastic bottle straight tube, sealing on inner plug, lid and screw cap. Filling by two peristaltic pump complete, accurate loading, can be completed without bottle filling; automatic for the lid, the pressure plug and the cap are completed by the manipulator, action reliable; capping constant torque to ensure that the appearance of the lid destroyed. The machine filling, put inner seal, sealing one for three, advanced design, compact structure.

This machine can also finish the automatic filling of the glass bottle and dropper cap, and automatically cover the cap and the screw cap.

The main technical parameters

capacity: 40-50 bottles / min (eye drops bottle)

30-40 bottles / minute (glass bottle)

Applicable bottles: 10ml / 15ml garden eye drops bottles, 30ml glass bottles

Filling head: double head

Loading accuracy: 0 ~ 2%

Pressure plug head number: single head

Capping heads: single head

Power: 220V 50Hz / 60Hz

Power: 2Kw

Dimensions: 1650 × 1300 × 1850

Weight: 950kg

The main components of the device configuration
