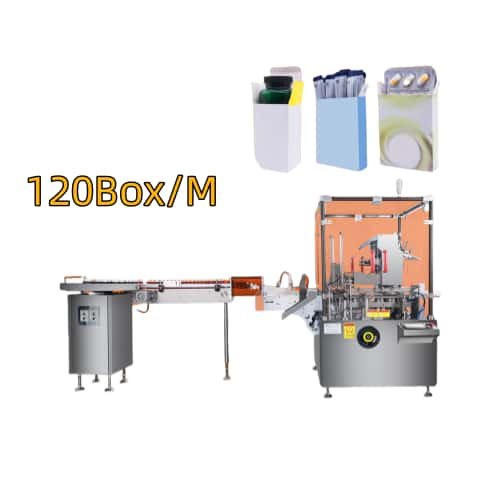

Carton Packaging Machine

The vacuum suction cup device on the carton feeding mechanism holds the carton and feeds it into the star wheel fixture, then a set of cylinders from below fold the inner small flaps.

After the carton is transferred to this station, the stopper cylinder on the ear folding mechanism 1 blocks the large ear, and the ear folding cylinder folds the large ear into the carton, followed by the flattening of the large ear by the ear pressing cylinder.

Place the desired items into the carton.

The rotating cylinder on the ear folding mechanism 2, together with the ear pressing rod, folds the inner small flaps on the top of the carton.

After the carton is transferred to this station, the stopper cylinder on the ear folding mechanism 2 blocks the large ear, and the ear folding cylinder folds the large ear into the carton, followed by the flattening of the large ear by the ear pressing cylinder.

After the finished product of carton folding is transferred to this station, a set of pushing cylinder pushes the finished product out of the star wheel.
