Pharma Blister Packaging Machine

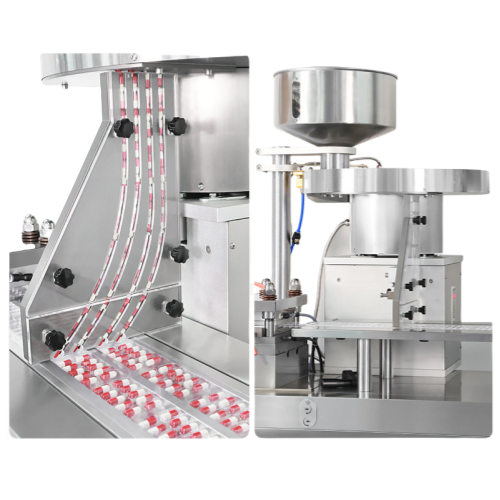

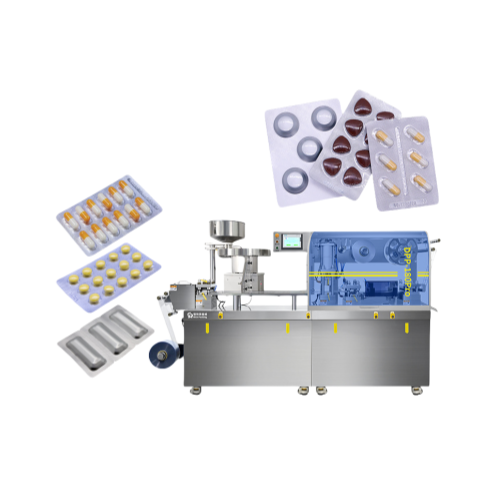

The blister packing machine dpp 250 is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc, it is suitable for the Alu-PVC package of medicine, food, electric parts etc. Aided forming Pre‐cutting Inspection and rejecting control systems. Print mark registration Automatic feeder
Remarks：
* Best option for small batches, pharmaceutical R&D and pilot plants.
* It allows forming thermoplastic and cold forming materials (Alu-Alu).
* It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
* Automation by PLC and operation through touch screen control panel.
* It has pneumatic drives, which lend it high robustness and low maintenance.
* It allows forming thermoplastic and cold forming materials (Alu-Alu).
* It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
* Automation by PLC and operation through touch screen control panel.
* It has pneumatic drives, which lend it high robustness and low maintenance.
* It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.
Specifications
| Model | DPP-88/250 for optional |
|---|---|
| Cutting frequency | Al-Al: 6-20 times/min Al-plastic: 20-40 times/min |
| Capacity | Al-Al: 1200 (According to standard plate 80×57) Al-plastic: 2400 (According to standard plate 80×57) |
| Max shaping areas and depth | Al-Al: 80×100×14 Al-plastic:80×110×26 |
| Air pressure | 0.4-0.6Mpa |
| Power supply | 380V/220V 50Hz |
| Main motor power | 0.75kw |
| PVC hard pieces | 0.15-0.5×100mm |
| PTP aluminum foil | 0.02-0.035×100mm |
| Dialysis paper | 50-100g×100mm |
| Mould cooling | tap water or back water |
| Machine dimensions | 1400×460×950mm |
| Net weight | 450kg |
