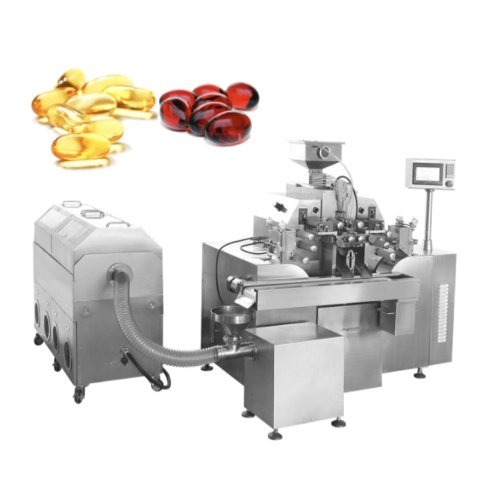

Pharmaceutical soft gel capsule making machine
| Model | H60 | H100 | H200 | H300 |
|---|---|---|---|---|
| Roller Die Dimension (mm) | Φ64x60 | Φ64x100 | Φ103x200 | Φ150x300 |
| Roller Die Pressure (MPa) | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 |
| Roller Die Speed (RPM) | 0-4 Stepless Speed Adjust | 0-4 Stepless Speed Adjust | 0-6 Stepless Speed Adjust | 0-4 Stepless Speed Adjust |
| Material Feeding Quantity (mL) | 4 X (0-1.5) | 6 X (0-1.5) | 12X (0-2) | 24 X (0-1.5) |
| Filling Quantity Precision (mg) | <500mg, ±1% ; >500mg, ±0.5% | |||
| Power | AC380V 50Hz 1.5kW | AC380V 50Hz 1.5kW | AC380V 50Hz 7kW | AC380V 50Hz 10kW |
| External Size (mm) | 670×450×750 | 620×660×1350 | 1800×770×1800 | 1880×1050×2000 |
| Weight (kg) | 200 | 400 | 1250 | 1600 |
Finished product display
Common Softgel Shapes&Filling Quantity
| ROUND | |||||||||
NO. | 1.5 | 2 | 3 | 6 | 7 | 8 | 10 | 36 | 40 | |
MINIMS | 1.5 | 2 | 3 | 6 | 7 | 8 | 10 | 36 | 40 | |
| mL | 0.092 | 0 .123 | 0.185 | 0.37 | 0.431 | 0.493 | 0.616 | 2.218 | 2.464 | |
| OBLONG | |||||||||
| NO. | 4 | 5 | 6 | 8 | 10 | 11 | 14 | 16 | 20 | |
| MINIMS | 4 | 5 | 6 | 8 | 10 | 11 | 14 | 16 | 20 | |
| mL | 0.246 | 0.308 | 0.37 | 0.493 | 0.616 | 0.678 | 0.863 | 0.986 | 1.232 | |
| OVAL | |||||||||
| NO. | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 32 | |
| MINIMS | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 32 | |
| mL | 0.092 | 0.123 | 0.185 | 0.246 | 0.308 | 0.37 | 0.493 | 0.616 | 1.972 | |
| TUBE | |||||||||
| NO. | 5 | 5.5 | 6 | 8 | 9 | 9.5 | 10 | 18 | 20 | |
| MINIMS | 5 | 5.5 | 6 | 8 | 9 | 9.5 | 10 | 18 | 20 | |
| mL | 0.308 | 0.339 | 0.37 | 0.493 | 0.555 | 0.585 | 0.616 | 1.109 | 1.232 | |
| DROP | |||||||||
| NO. | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 24.5 | 30 | |
| MINIMS | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 24.5 | 30 | |
| mL | 0.308 | 0.37 | 0.493 | 0.616 | 0.739 | 0.942 | 1.232 | 1.509 | 1.848 | |
| CALABSH | |||||||||
| NO. | 4 | 5 | 5.5 | 6 | 6.5 | 8 | 10 | 12 | 15 | |
| MINIMS | 4 | 5 | 5.5 | 6 | 6.5 | 8 | 10 | 12 | 15 | |
| mL | 0.246 | 0.308 | 0.339 | 0.37 | 0.4 | 0.439 | 0.616 | 0.739 | 0.924 | |
| GOLDFISH | |||||||||
| NO. | 10 | 12 | 14 | 15 | 16 | 18 | 19 | 20 | 25 | |
| MINIMS | 10 | 12 | 14 | 15 | 16 | 18 | 19 | 20 | 25 | |
| mL | 0.616 | 0.739 | 0.863 | 0.924 | 0.986 | 1.109 | 1.17 | 1.232 | 1.54 | |
| FLAGON | |||||||||
| NO. | 6 | 7 | 7.5 | 8 | 8.5 | 9 | 10 | 12 | 15 | |
| MINIMS | 6 | 7 | 7.5 | 8 | 8.5 | 9 | 10 | 12 | 15 | |
| mL | 0.37 | 0.431 | 0.462 | 0.493 | 0.524 | 0.555 | 0.616 | 0.739 | 0.924 | |
| FISH | |||||||||
| NO. | 4 | 5 | 6 | 7 | 7.5 | 8 | 9 | 10 | 12 | |
| MINIMS | 4 | 5 | 6 | 7 | 7.5 | 8 | 9 | 10 | 12 | |
| mL | 0.246 | 0.308 | 0.37 | 0.431 | 0.462 | 0.493 | 0.555 | 0.616 | 0.739 | |
| AUBBRGINE | |||||||||
| NO. | 5 | 6 | 6.5 | 7.5 | 8 | 9 | 10 | 12 | 39 | |
| MINIMS | 5 | 6 | 6.5 | 7.5 | 8 | 9 | 10 | 12 | 39 | |
| mL | 0.308 | 0.37 | 0.4 | 0.462 | 0.493 | 0.555 | 0.616 | 00.739 | 2.402 | |
