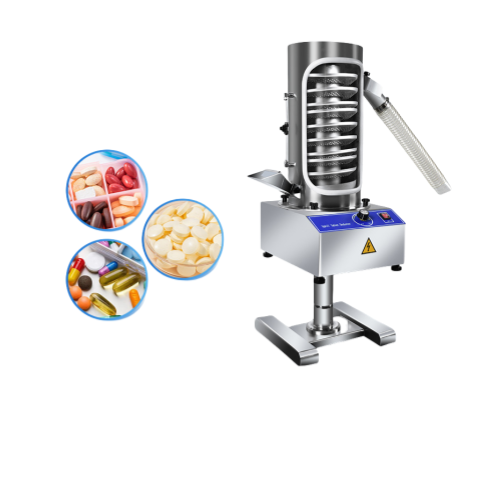

Tablet deduster
Tablet deduster is developed by absorbing advanced technology at home and abroad. It has the dual functions of tablet improvement and dust removal so that it can work in conjunction with various tablet pressing machines and metal detection machines.This machine can be applicable in the field of pharmaceutical industry, food industry, chemical engineering, electronics, and so on.
In the design process, the machine adopts several novel designs, aiming to ensure that the production process can be safer and more standardized.
Specifications
| Production capacity (pcs/h) | 800,000 (Φ6) |
|---|---|
| Power (W) | 150 |
| Dedusting distance (m) | 6 |
| Max. tablet diameter. (mm) | Φ25 |
| Power supply | 220V/110V, 50Hz/60Hz, 1P |
| Compressed air | 0.1 m³/min~0.1MPa |
| Vacuum cleaning | 2.5 m³/min~0.1MPa |
| Noise (dB) | <75 |
| Dimension (mm) | 500*550*1350-1500 |
| Weight (kg) | 70 |
Remarks
Long dedusting path, automatic tablet polish on all sides and good dedusting effect without damaging tablets.
Utilized as conveying equipment for flake, block and granular solid preparation products requiring automatic dust removal.
In conformity with the GMP requirements.
